Conference Table


Conference Table T1
New York, NY

This thermo-formed high polished corian conference table measures  33.5' x 15.5' and seats 30. The table splits apart into 16 segments for ease of storage when not in use.

Each table segment is powered with a recessed pop down powered grommet with data/power.  Each table segment connects to its neighbor and connect to floor outlets at the apex points

To allow for easier use of the concealed and under mounted power grommets a led back lit corian light system that marks the power points was used.  The led indicator sits within a milled channel out channel in the corian to give a seamless appearance.

The side panels on each table segment house rare earth magnets to help hold the metal alignment pins in place, as well as align metal side cover plates when the table is used in separate groups.

WEB NYSE T1 - detail light REVISED.jpg

  MODEL VIEW  - Control surfaces

MODEL VIEW - Control surfaces

  MODEL VIEW  - Sixteen assembled segments

MODEL VIEW - Sixteen assembled segments

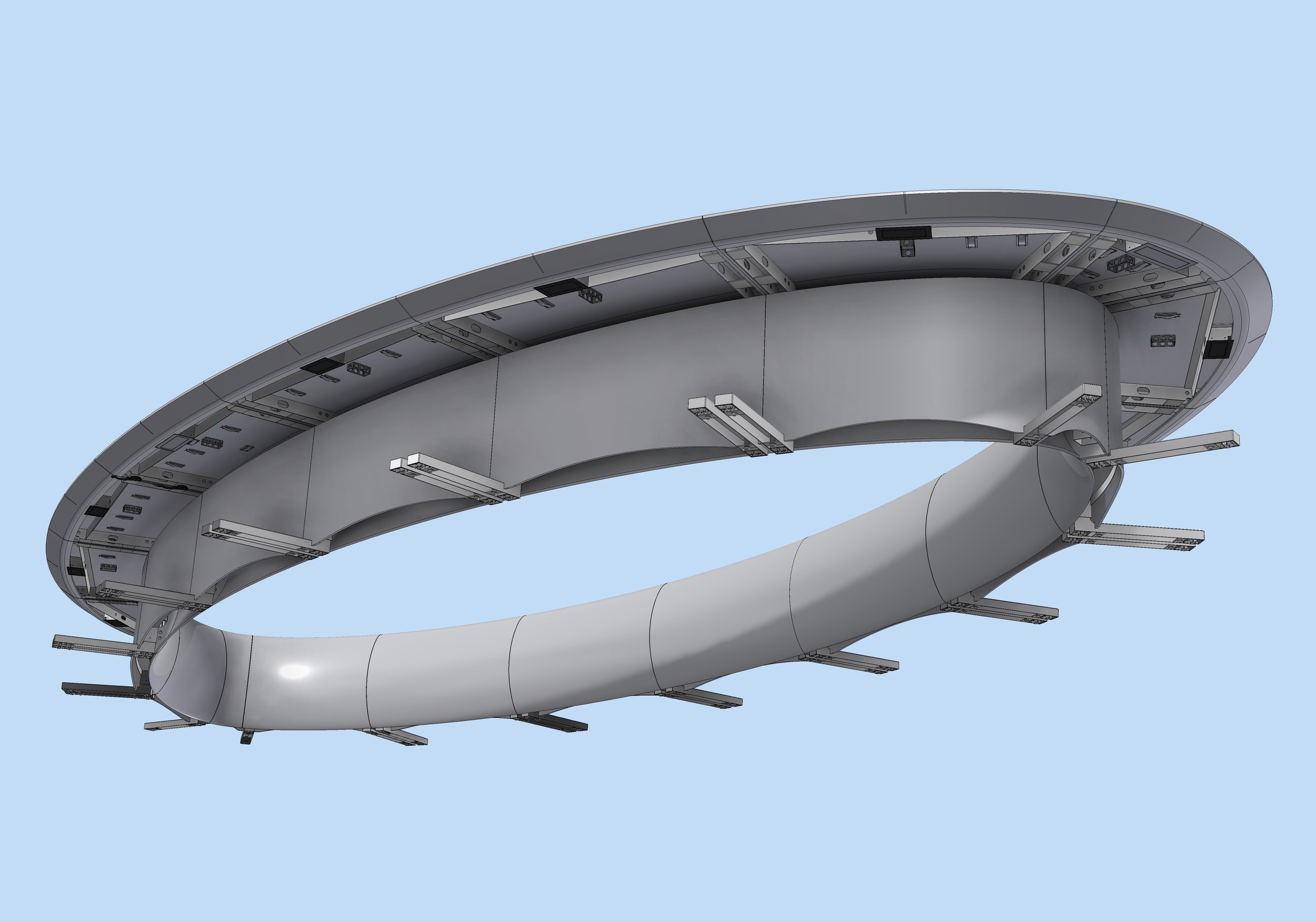

  MODEL VIEW  - Underside

MODEL VIEW - Underside

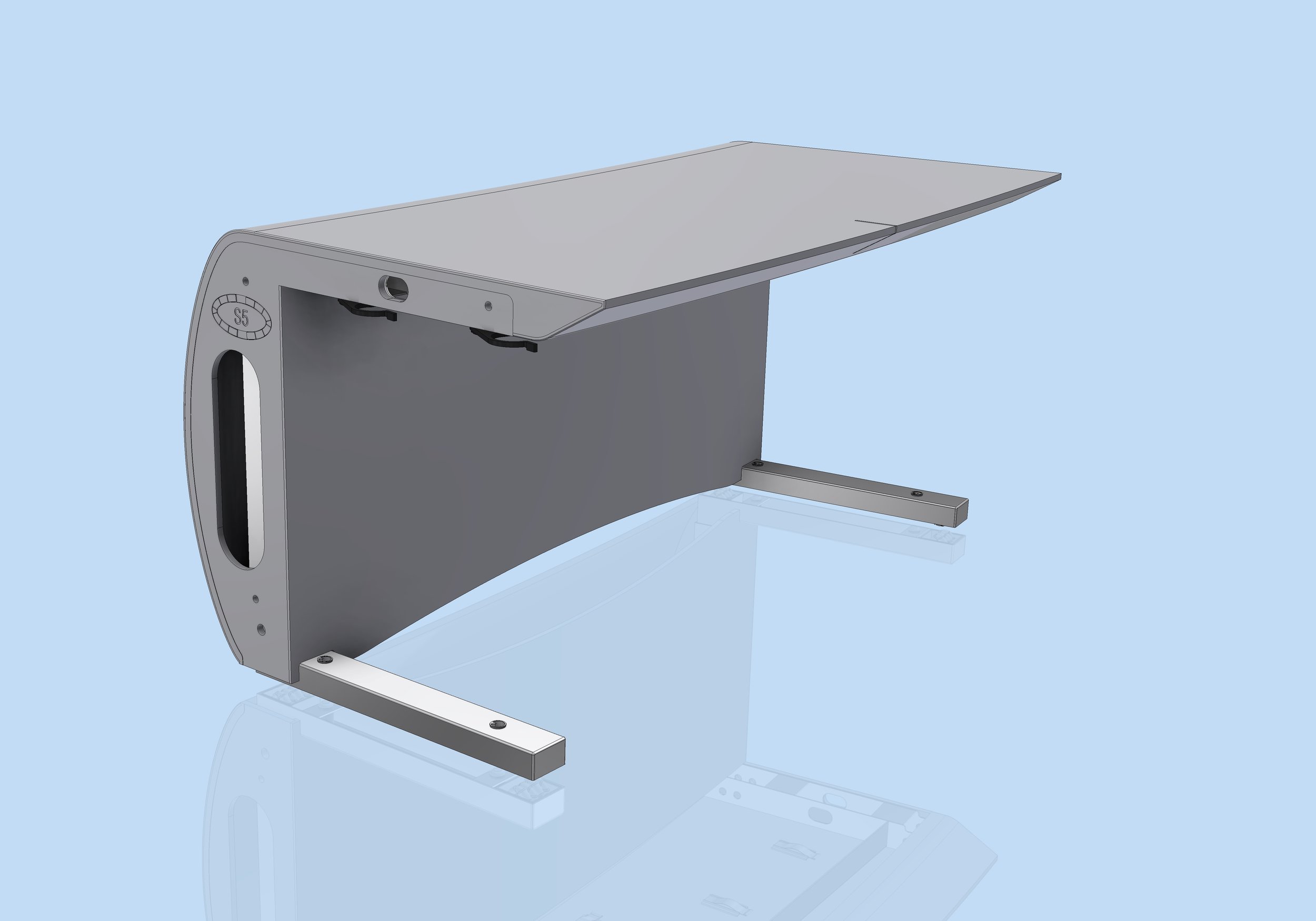

  MODEL VIEW  - Typical segment

MODEL VIEW - Typical segment

  MODEL VIEW  - Typical segment

MODEL VIEW - Typical segment

  MODEL VIEW  - Segment underside with fastening system

MODEL VIEW - Segment underside with fastening system
